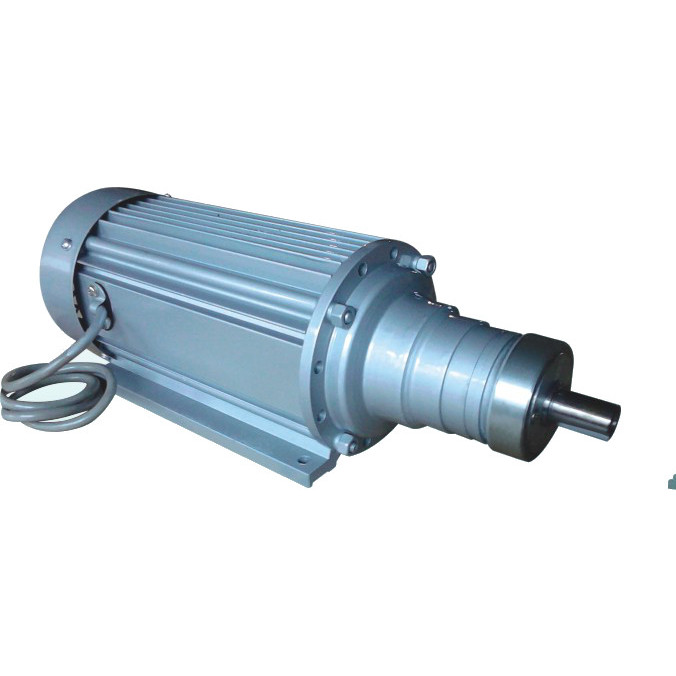

Grinding Motor For Glass Machinery

Designed for Ceramic Machinary
Frame size 80-90
Power: 1.5kW-3kW
Quantity:
  • Yinda

  • 12 Months

  • Sealed plywood cases

M series three-phase asynchronous motor is designed for all types of glass machinery.

1, excellent performanceof waterproof and dustproof to meet the requirements of glass machining;
2, samll radial and axial clearances
3, LOW-vibration design to ensure the dimensional accuracy and surfacefinish;
4, uniform quality
Type kw r/min % cosΦ A Ist Tst Tm Lp dB(A) mm/s kg
M801-2 1.5 2840 81 0.85 3.3 7 2.2 2.5 67 1.8 25
M801-2 1.75 2840 81 0.86 3.8 7 2.2 2.5 67 1.8 27
M802-2 2.2 2840 82 0.87 4.7 7 2.2 2.5 67 1.8 28
M803-2 3 2840 85 0.88 6.1 7 2.2 2.5 72 1.8 29.5
M802-4 1.5 1400 77 0.8 3.7 6 2.2 2.5 58 1.8 28
M901-2 1.5 2840 81 0.85 3.3 7 2.2 2.5 67 1.8 24.5
M901-2 1.75 2840 81 0.86 3.8 7 2.2 2.5 67 1.8 26
M902-2 2.2 2840 82 0.87 4.7 7 2.2 2.5 67 1.8 27.5
M903-2 3 2840 85 0.88 6.1 7 2.2 2.5 72 1.8 29
M90-4 1.5 1400 77 0.8 3.7 7 2.2 2.5 58 1.8 27.5
