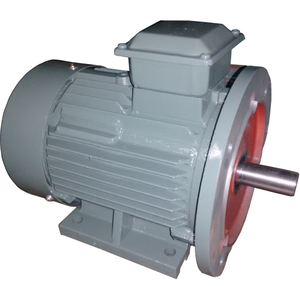

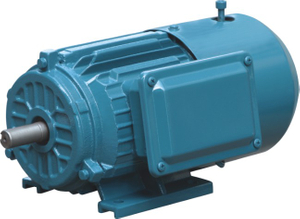

High Efficiency IE2- Electric Motor - Cast Iron Frame

Three Phase Motor, TEFC IP54
0.22-200kW
IMB3,B5, B35, B34

Quantity:
  • Yinda
  • 12 Months
  • Honeycomb carton, 1 motor in 1 carton
  • Sealed plywood case, 1 motor in 1 case

Typical Applications:

Pumps
Fans
Crushers
Conveyors
Machine tools
Milling applications
Centrifugal machines
Presses
Elevators
Looms
Grinders
Woodworking
Cooling
Packaging equipment

Standard Features:
Three-phase, multivoltage, IP54, TEFC
High efficiency - complying with IE2 efficiency levels according to IEC60034-30
Output: 0,55 up to 200kW
Number of Poles: 2, 4, 6 and 8
Frames: 80 up to 315
Mounting: B3
Voltage: 220-240/380-415V / 380-415/660V
Class “F” insulation (ΔT = 80K)
Continuous duty: S1
Ambient temperature: 40 °C, at 1000 m.a.s.l
Squirrel cage rotor / Aluminium die cast

*For additional details about Inverter operation, please contact our technical support.

Optional Available:
Frequency: 60 Hz
Other voltages
Thermal protection:
Double shaft end
Encoder
More options available, on request.
Motor Type Rated Output (50Hz) Efficiency Power factor Rated Current ILR / Irated TLR/Trated Tmax/Trated LWA
kW HP Full Load 100% CosΦ A dB(A)
3000 r/min = 4 poles 380V 50Hz
80M1-2 0.75 1 77.4 0.82 1.8 6.8 2.3 2.3 62
80M2-2 1.1 1.5 79.6 0.83 2.5 7.1 2.3 2.3 62
90S-2 1.5 2 81.3 0.84 3.3 7.3 2.3 2.3 67
90L-2 2.2 3 83.2 0.85 4.7 7.6 2.3 2.3 67
100L-2 3 4 84.6 0.87 6.2 7.8 2.2 2.3 74
112M-2 4 5.5 85.8 0.88 8 8.1 2.2 2.3 77
132S1-2 5.5 7.5 87 0.88 10.9 8.2 2.2 2.3 79
132S2-2 7.5 10 88.1 0.89 14.5 7.8 2.2 2.3 79
160M1-2 11 15 89.4 0.89 21 7.9 2.2 2.3 81
160M-2 15 20 90.3 0.89 28.4 7.9 2.2 2.3 81
160L-2 18.5 25 90.9 0.89 34.7 8.0 2.2 2.3 81
180M-2 22 30 91.3 0.89 41.1 8.1 2.2 2.3 83
200L1-2 30 40 92 0.89 55.7 7.5 2 2.3 84
200L2-2 37 50 92.5 0.89 68.3 7.5 2 2.3 84
225M-2 45 60 92.9 0.89 82.7 7.5 2.2 2.3 86
250M-2 55 75 93.2 0.89 100.7 7.6 2.2 2.3 89
280S-2 75 100 93.8 0.89 136.5 6.9 1.8 2.3 91
280M-2 90 120 94.1 0.89 163.3 6.9 1.8 2.3 91
315S-2 110 150 94.3 0.9 196.9 7.0 1.8 2.2 92
315M-2 132 180 94.6 0.9 235.6 7.0 1.8 2.2 92
315L1-2 160 220 94.8 0.91 281.8 7.1 1.8 2.2 92
315L2-2 200 270 95 0.91 351.5 7.1 1.8 2.2 92
1500 r/min = 4 poles 380V 50Hz
80M2-4 0.75 1 79.6 0.76 1.9 6.4 2.3 2.3 56
90S-4 1.1 1.5 81.4 0.77 2.7 6.6 2.3 2.3 59
90L-4 1.5 2 82.8 0.78 3.5 6.7 2.3 2.3 59
100L1-4 2.2 3 81.8 0.8 5.1 7.3 2.3 2.3 64
100L2-4 3 4 83.3 0.81 6.8 7.5 2.3 2.3 64
112M-4 4 5.5 86 0.81 8.7 7.5 2.3 2.3 65
132S-4 5.5 7.5 87.7 0.82 11.6 7.5 2 2.3 71
132M-4 7.5 10 88.7 0.83 15.5 7.3 2 2.3 71
160M-4 11 15 89.8 0.83 22.4 7.4 2 2.3 73
160L-4 15 20 90.6 0.84 29.9 7.5 2 2.3 73
180M-4 18.5 25 91.2 0.85 36.3 7.6 2 2.3 76
180L-4 22 30 91.6 0.85 42.9 7.7 2.1 2.3 76
200L-4 30 40 92.3 0.85 58.1 7.1 2.1 2.3 76
225S-4 37 50 92.7 0.86 70.5 7.3 2.1 2.3 78
225M-4 45 60 93.1 0.86 85.4 7.3 2.2 2.3 78
250M-4 55 75 93.5 0.86 103.9 7.3 2.2 2.3 79
280S-4 75 100 94 0.87 139.3 6.8 2.2 2.3 80
280M-4 90 120 94.2 0.88 165 6.9 2.2 2.3 80
315S-4 110 150 94.5 0.89 198.7 6.9 2.1 2.2 88
315M-4 132 180 94.7 0.89 238 6.9 2.1 2.2 88
315L1-4 160 220 94.9 0.9 284.6 6.9 2.1 2.2 88
315L2-4 200 270 95.1 0.9 355 6.9 2.1 2.2 88
1000 r/min = 6 poles 380V 50Hz
90S-6 0.75 1 75.9 0.71 2.1 5.8 2 2.1 57
90L-6 1.1 1.5 78.1 0.72 3 5.9 2 2.1 57
100L-6 1.5 2 79.8 0.72 4 5.9 2 2.1 61
112M-6 2.2 3 81.8 0.72 5.7 6.2 2 2.1 65
132S-6 3 4 83.3 0.72 7.6 6.4 2 2.1 69
132M1-6 4 5.5 84.6 0.74 9.7 6.6 2 2.1 69
132M2-6 5.5 7.5 86 0.75 13 6.8 2 2.1 69
160M-6 7.5 10 87.2 0.78 16.8 6.8 2 2.1 73
160L-6 11 15 88.7 0.79 23.9 6.9 2 2.1 73
180L-6 15 20 89.7 0.82 31 7.3 2 2.1 73
200L1-6 18 25 90.4 0.8 37.8 7.2 2 2.1 73
200L2-6 22 30 90.9 0.81 45.4 7.3 2 2.1 73
225M-6 30 40 91.7 0.82 60.6 6.8 2 2.1 74
250M-6 37 50 92.2 0.83 73.5 7 2 2.1 76
280S-6 45 60 92.7 0.85 86.8 7.2 2 2 78
280M-6 55 75 93.1 0.86 104.4 7.2 2 2 78
315S-6 75 100 93.7 0.84 144.8 6.5 2 2 83
315M-6 90 120 94 0.85 171.1 6.6 2 2 83
315L1-6 110 150 94.3 0.85 208.5 6.6 2 2 83
315L2-6 132 180 94.6 0.86 246.5 6.6 2 2 83
IE2 motor drawing
