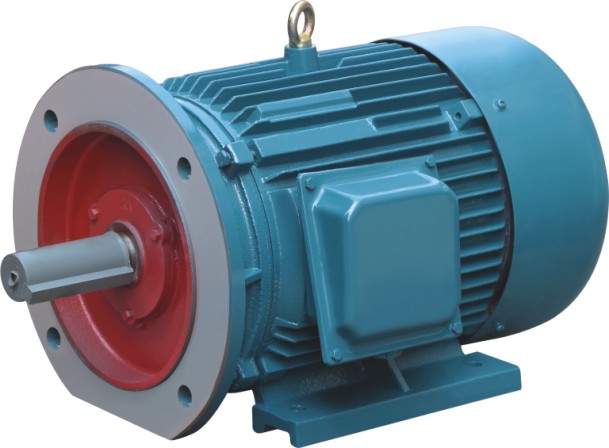

Cast Iron Frame - Standard Efficiency - IE1 Three Phase Motor

Cast iron housing
0.55~200kW
IMB3/B5/B35
IP54/F

Quantity:
  • Yinda
  • 12 Months
  • Honeycomb carton, 1 motor in 1 carton
  • Sealed plywood case, 1 motor in 1 case
Typical Applications:
Pumps
Fans
Crushers
Conveyor belts
Mills
Centrifugal machines
Presses
Elevators
Packaging equipment
Grinders and others

Standard Features:
Three-phase, multivoltage, IP54, TEFC
Output: 0.55 up to 200 kW
Frames: 80 up to 315
Voltage: 220-240/380-415V (up to 100L) / 380-415/660V (from 112M and up)
Class “F” insulation (ΔT = 80K)
Continuous duty: S1
Ambient temperature: 40 °C, at 1000 m.a.s.l
Squirrel cage rotor/Aluminium die cast
Performance characteristics according to IEC 60034
*For additional details about Inverter operation, please contact our technical support.

Optional Available:
Non-drive end shaft
Bearing sealing
Shaft dimensions to customer requirements
Canopy for V1 applications
Special painting
Space heaters
Thermal protection (thermistors)
Tpe Rate output Voltage Current Frequenc Speed Efficienc Power factor ILR/Irated TLR/Trated Tmax/Trated Nosie
Kw HP V A Hz r/min % CosΦ Lw dB(A)
80M1-2 0.75 1 380 1.8 50 2830 75 0.84 6.5 2.2 2.3 71
80M2-2 1.1 1.5 380 2.5 50 2830 77 0.86 7 2.2 2.3 71
90S-2 1.5 2 380 3.4 50 2840 78 0.85 7 2.2 2.3 75
90L-2 2.2 3 380 4.7 50 2840 82 0.86 7 2.2 2.3 75
100L-2 3 4 380 6.4 50 2880 82 0.87 7 2.2 2.3 79
112M-2 4 5.5 380 8.2 50 2890 85.5 0.87 7 2.2 2.3 79
132S1-2 5.5 7.5 380 11.1 50 2900 85.5 0.88 7 2 2.2 83
132S2-2 7.5 10 380 15 50 2900 86.2 0.88 7 2.2 2.2 83
160M1-2 11 15 380 22 50 2930 87.2 0.88 7 2 2.2 87
160M2-2 15 20 380 29 50 2930 88.2 0.88 7 2 2.2 87
160L-2 18.5 25 380 36 50 2930 89 0.89 7 2 2.3 87
180M-2 22 30 380 42.2 50 2940 89 0.89 7 2 2.2 92
200L1-2 30 40 380 57 50 2950 90 0.89 7 2 2.2 95
200L2-2 37 50 380 70 50 2950 90.5 0.89 7 2 2.2 95
225M-2 45 60 380 84 50 2970 91.5 0.89 7 2 2.2 97
250M-2 55 75 380 103 50 2970 91.5 0.89 7 2 2.2 97
280S-2 75 100 380 140 50 2970 91.5 0.89 7 2 2.2 99
280M-2 90 120 380 167 50 2970 92 0.89 7 2 2.2 99
315S-2 110 150 380 203 50 2980 92.5 0.89 7 1.8 2.2 104
315M-2 132 180 380 242 50 2980 93 0.89 7 1.8 2.2 104
315L1-2 160 220 380 292 50 2980 93.5 0.89 7 1.8 2.2 104
315L2-2 200 270 380 365 50 2980 93.5 0.89 7 1.8 2.2 104
80M1-4 0.55 0.75 380 1.5 50 1390 73 0.76 6 2.2 2.3 67
80M2-4 0.75 1 380 2 50 1390 74.5 0.76 6 2.2 2.3 67
90S-4 1.1 1.5 380 2.8 50 1400 78 0.78 6.5 2.3 2.3 67
90L-4 1.5 2 380 3.7 50 1400 79 0.79 6.5 2.3 2.3 67
100L1-4 2.2 3 380 5 50 1420 81 0.82 7 2.2 2.3 70
100L2-4 3 4 380 6.8 50 1420 82.5 0.81 7 2.2 2.3 70
112M-4 4 5.5 380 8.8 50 1440 84.5 0.82 7 2.2 2.3 74
132S-4 5.5 7.5 380 11.7 50 1440 85.5 0.84 7 2 2.3 78
132M-4 7.5 10 380 15 50 1440 87 0.85 7 2.2 2.3 78
160M-4 11 15 380 23 50 1460 88 0.84 7 2.2 2.3 82
160L-4 15 20 380 30 50 1460 88.5 0.85 7 2.2 2.2 82
180M-4 18.5 25 380 35 50 1470 91 0.86 7 2 2.2 82
180L-4 22 30 380 43 50 1470 91.5 0.86 7 2 2.2 82
200L-4 30 40 380 57 50 1470 92.2 0.87 7 2 2.2 84
225S-4 37 50 380 70 50 1480 91.8 0.87 7 1.9 2.2 84
225M-4 45 60 380 84 50 1480 92.3 0.88 7 1.9 2.2 84
250M-4 55 75 380 103 50 1480 93 0.88 7 2 2.2 86
280S-4 75 100 380 140 50 1480 93 0.88 7 2 2.2 90
280M-4 90 120 380 164 50 1480 93.5 0.88 7 2 2.2 90
315S-4 110 150 380 201 50 1480 93.5 0.89 7 1.8 2.2 98
315M-4 132 180 380 240 50 1490 94 0.89 7 1.8 2.2 101
315L1-4 160 220 380 289 50 1490 94.5 0.89 7 1.8 2.2 101
315L2-4 200 270 380 361 50 1490 94.5 0.89 7 1.8 2.2 101
90S-6 0.75 1 380 2.3 50 910 72.5 0.7 5.5 2 2.2 65
90L-6 1.1 1.5 380 3.2 50 910 73.5 0.72 5.5 2 2.2 65
100L-6 1.5 2 380 4 50 940 77.5 0.74 6 2 2.2 67
112M-6 2.2 3 380 5.6 50 940 80.5 0.74 6 2 2.2 67
132S-6 3 4 380 7.3 50 960 83 0.76 6.5 2 2.2 71
132M1-6 4 5.5 380 9.4 50 960 84 0.77 6.5 2 2.2 71
132M2-6 5.5 7.5 380 12.6 50 960 85.3 0.78 6.5 2 2.3 71
160M-6 7.5 10 380 17 50 970 86 0.78 6.5 2 2 75
160L-6 11 15 380 25 50 970 87 0.78 6.5 2 2 75
180L-6 15 20 380 31 50 970 89.5 0.81 6.5 1.8 2 78
200L-6 18.5 25 380 45 50 970 89.8 0.83 6.5 1.8 2 78
200L1-6 22 30 380 34 50 970 90.2 0.83 6.5 1.8 2 78
200L2-6 30 40 380 60 50 980 90.2 0.85 6.5 1.7 2 81
225M-6 37 50 380 72 50 980 91 0.86 6.5 1.6 2 87
280S-6 45 60 380 85 50 980 93.5 0.86 6.5 1.6 2 87
280M-6 55 75 380 104 50 980 92 0.86 6.5 1.6 2 88
315S-6 75 100 380 141 50 990 93 0.87 6.5 1.6 2 88
315M-6 90 120 380 169 50 990 93.5 0.87 6.5 1.6 2 88
315L1-6 110 150 380 205 50 990 92 0.87 6.5 1.6 2 89
315L2-6 132 180 380 245 50 990 92.5 0.87 6.5 1.6 2 89
112M-8 2.2 3 380 4.8 50 710 73 0.66 5.5 2 2 63
160M1-8 4 5.5 380 9.9 50 720 84 0.73 6 2 2 69
160M2-8 5 7.5 380 13 50 720 85 0.74 6 2 2 69
160L-87 7.5 10 380 8 50 720 86 0.75 5.5 2 2 72
180L-8 11 15 380 25 50 730 86.5 0.77 6 1.7 2 72
200L-8 15 20 380 34 50 730 88 0.76 6 1.8 2 75
225S-8 18.5 25 380 41 50 730 89 0.76 6 1.7 2 75
250M-8 30 40 380 63 50 730 90.5 0.8 6 1.6 2 88
280S-8 37 50 380 78 50 740 92 0.8 6.5 1.6 2 88
280M-8 45 60 380 93 50 740 92.5 0.8 6.5 1.6 2 89
315S-8 55 75 380 113 50 740 92 0.8 6.5 1.6 2 89
315M-8 75 100 380 152 50 740 92.5 0.81 6.5 1.6 2 89
315L1-8 90 120 380 179 50 740 92.5 0.82 6.5 1.6 2 89
315L2-8 110 150 380 218 50 740 92.5 0.82 6.5 1.6 2 89

IE1 motor drawing
